Busy road corridors often hide a crowded mix of pipes, cables and drains below the pavement. New work must fit around water mains, gas lines, sewer pipes, storm drains and communication lines. A small error in depth or location can stop excavation and force a costly plan change.
The problem gets harder when traffic must stay open during construction. Crews have little room for equipment, material storage and safe trenches. Good construction design finds those limits early and builds the work plan around them.
What makes a corridor utility-dense?
A utility-dense corridor has many public and private utility lines inside a narrow right-of-way. Older roads often became crowded over time as each new service was added beside or above older lines. The result is a tight underground space with little room left for new work.
Gravity sewer and storm pipes need set slopes so water can flow. Water mains, gas pipes and force mains can change depth more easily, but they still need safe clearance. Electric conduits, fiber lines and old phone cables often fill the shallow soil near the road edge.
Groundwater can make the space even tighter. A high water table may limit how deep crews can dig without pumps or trench support. New site connections must fit inside this crowded zone without cutting off service to nearby homes or businesses.
How do designers confirm where existing utilities are located
Old maps are useful, but they are rarely exact enough for final design. Records may show where a line was planned, not where crews placed it in the field. Repairs and past road work may have moved lines without a clear update to the map.
Subsurface Utility Engineering gives designers better data. The process starts with record research and a survey of visible items such as valves, manholes and utility boxes. Crews then use ground-penetrating radar or electronic locating tools to trace buried lines.

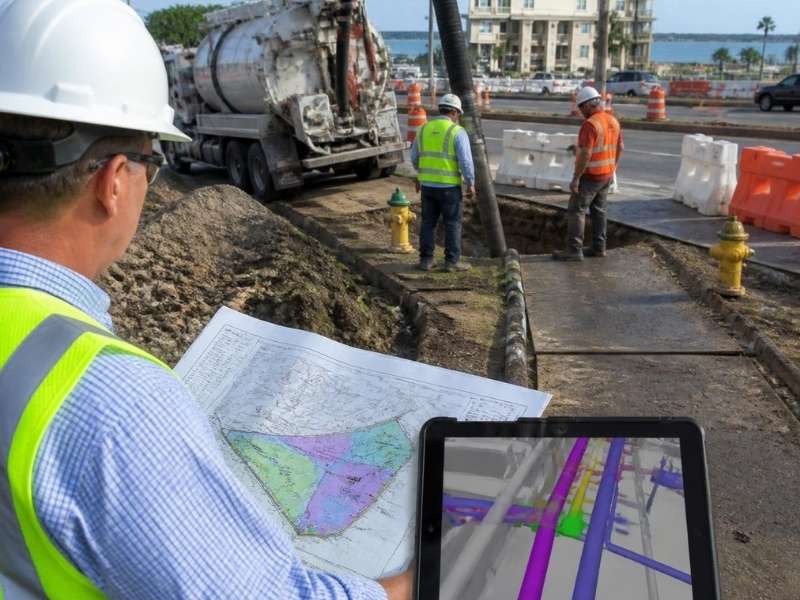

Vacuum excavation gives the most exact result. A small test hole exposes the utility without the damage caused by a backhoe. The crew can record its depth, size, material and true position.
That data should be tied to the project survey. Engineers can then place each known line on the same plan as the new work. This step cuts the chance of finding a major conflict after construction begins.
What happens when new construction conflicts with buried infrastructure
A conflict occurs when a proposed pipe, footing, driveway or structure enters the space used by an existing utility. Even a few inches can matter when a sewer pipe needs a fixed slope. One bad crossing can affect the grade of a long pipe run.
A new storm drain may cross a water main at the same depth. The water line may need an offset, or the storm pipe may need a new route. Each choice affects cost, access and future maintenance.
A deep sewer trench may also pass below electric or fiber lines. Crews may need trench boxes, hand digging and support for the exposed service. These steps take time, so they belong in the plan and cost estimate.
Some conflicts can be solved by changing the proposed design. Others require the utility owner to move an existing line. Early findings give both sides time to agree on the fix before crews arrive.
How can utility work be phased without blocking access
Utility work along an active road can’t take the full corridor at once. Engineers divide the project into smaller work zones that crews can open and close in stages. Each stage must show traffic flow, work space and access to nearby property.
Lane shifts can move traffic around an open trench. Night work may help when daytime traffic is too heavy. Steel trench plates can reopen a lane after crews stop for the day.
Business entrances need special care. A phased plan may keep one driveway open while another is rebuilt. Temporary gravel drives can also protect access during short work periods.
Emergency routes must stay clear through every phase. Fire trucks and ambulances need enough width to pass the work area. A traffic plan that ignores emergency access will fail during review and create real risk in the field.
Which design approach reduces field changes and service disruptions
A shared three-dimensional utility model can reveal conflicts before final plans are issued. The model places known pipes, conduits, structures and proposed work in one view. Engineers can see where lines cross, where clearances are too small and where a structure blocks future repair access.
The model is only as good as the survey behind it. Guessing at pipe depth inside a detailed model still gives a bad answer. Test holes should confirm the most risky crossings before the design is approved.
Utility owners should review the plan early. Water, power, gas and communication providers may have their own clearance and access rules. Their comments can affect pipe routes, road sections and the order of construction.
Road and drainage work should also be planned together. Replacing an old utility before new pavement goes down avoids another cut later. One planned excavation costs less than digging up the same road twice.
Clear plan notes help crews know what must happen first. The drawings should mark test-hole data, utility owners, required clearances and planned relocation steps. A good set also tells the contractor where hand digging or special trench support is required.
Frequently Asked Questions
What is Subsurface Utility Engineering in land development?
Subsurface Utility Engineering is a method used to find and map buried utilities before construction. It combines records, surface surveys, locating tools and test holes. The goal is to give the design team better data before excavation starts.
Why are utility conflicts common in older road corridors?
Older corridors have gained new utility lines over many years. Each line had to fit inside the same narrow right-of-way. High groundwater and shallow bedrock can leave even less room for new work.
How does 3D clash detection help construction design?
Clash detection compares proposed work with known utility locations in a digital model. It flags crossings and small clearances before crews start digging. Engineers can then change the design or plan a relocation.
Who coordinates utility relocations along public roads?
The project civil engineer often leads the design work and contacts each utility owner. Road agencies and local public works staff may also need to approve the change. The final plan should state who moves each line and when the work must occur.
How do phased construction plans protect site access?
Phased plans limit trenching to one section at a time. They may use lane shifts, trench plates and temporary driveways to keep traffic moving. This lets nearby businesses and homes stay open while the utility work moves down the corridor.
