Downtown Pensacola’s Palafox Street got its first major stormwater upgrade since 1999. Work like this raises real stormwater design questions for anyone who owns property, builds or buys near a busy street. A street rebuild changes how rain moves across pavement, curbs and sidewalks. It also shows what solid drainage planning looks like in a tight downtown with little room to spare.
What Existing Conditions Must Be Mapped Before a Downtown Stormwater Upgrade?
A design team starts by measuring the street as it stands today. That means pavement grades, curb lines, drain inlets, buried utility lines, tree spots and walking paths. In a built-out downtown, this picture shows the limits before anyone changes how water flows.
Palafox sits in an older part of the city. Buildings crowd the sidewalk. Utility lines run close together underground. There’s little open dirt to work with. So the team maps what’s already there before drawing a single new pipe.
The main things a team records include:
- Pavement slopes and curb heights along each block
- Existing drain inlets and where they connect
- Buried water, sewer, gas and electric lines
- Tree roots, planters and landscaped strips
- Sidewalks, curb ramps and crosswalk paths
Miss one buried line and a new storm pipe can clash with it during digging. The New Palafox work saw this firsthand. The city’s water utility moved about 800 feet of water line because it ran into the path of the new storm pipes. Careful mapping up front keeps surprises like that smaller and cheaper.
How Does Curb Geometry Influence Where Street Runoff Collects?
Curbs, gutters and the tilt of the road surface steer rain toward the drains. When those slopes line up right, water runs along the gutter and drops into an inlet. When they don’t, water pools in travel lanes or at corners.
Every street has a slight tilt built in. The road crowns in the middle and falls toward each curb. That tilt is the cross slope, and it pushes water sideways to the gutter. From there the gutter line carries it downhill to the nearest inlet.
Curb returns at corners matter too. Those are the curved sections where two streets meet. If the grades there aren’t set with care, water can sheet across a crosswalk instead of turning into a drain. On a walkable street like Palafox, that turns into a daily nuisance for people on foot.

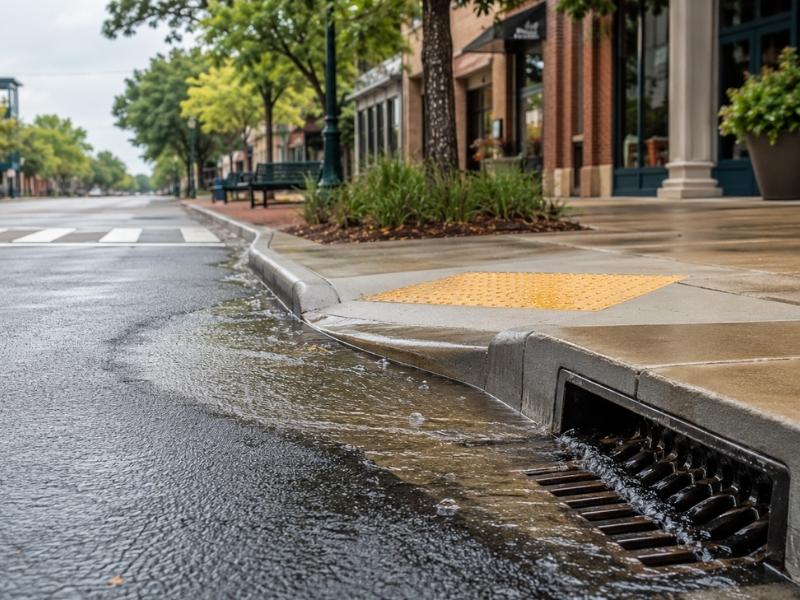

Why Must Stormwater Design Be Coordinated With ADA Curb Ramps and Crossings?
Curb ramps and crossings set the finished height at the street edge. Those same heights control where water goes. So drainage and accessible design have to be planned together, not tacked on one after the other.
The New Palafox project added 46 new ADA-compliant curb ramps and four raised mid-block crossings. A raised crossing works like a wide, gentle speed table. It lifts the walking path up to curb height, and that change shifts how water moves right at the crossing.
Here’s the tie between the two. A ramp needs gentle, steady slopes so a wheelchair can use it. A gutter needs enough fall to keep water moving. Set the ramp grade too flat and water sits on it. Tilt it too much and the ramp fails the access rules. The design has to satisfy both at the same time. That’s why inlets often sit just uphill of a ramp, so water gets caught before it reaches the crossing.
What Does Added Stormwater Pipe Capacity Actually Tell the Public?
The City says the New Palafox project added more than 1,700 feet of new stormwater pipe that can hold about 93,000 gallons, which it compares to one inch of standing water. That number describes one part of the new system. It isn’t a promise that flooding is over.
That’s a real jump for a street that hadn’t seen a stormwater upgrade in nearly 30 years. The project also added 44 new drainage structures and more than 12,000 square feet of pervious surface that lets some rain soak into the ground. All of that helps the street handle a heavy shower better than the old pipes did.
Still, a capacity figure marks a design point. It doesn’t set a flood ceiling. Pensacola is one of the wettest cities in the country, with close to 68 inches of rain in a normal year. A slow all-day soaking is different from a burst that drops two inches in an hour. Tides, downstream pipes and rainfall strength all shape what happens on the street. More pipe helps. But no single number covers every storm.
Which Long-Term Maintenance Questions Should Follow a Downtown Drainage Upgrade?
Good stormwater design keeps working only if crews can reach it. So the plan should account for inspection, cleaning and repair from day one. After paving, planters and benches go in, those access points still need to be usable.
Leaves, sand and trash all end up in street drains. Inlets clog. Pipes silt up. A downtown with heavy foot traffic and outdoor dining collects debris fast. If nobody can open a grate or reach a pipe without tearing up new pavers, the street pays for it later.
So it’s fair to ask a few things after a project like this. How often will crews clean the inlets? Can they reach the pipes without ripping out landscaping? Who’s on the hook for upkeep once the ribbon is cut? Those questions matter as much as the pipe size, because a drain full of sand moves no water at all.
Frequently Asked Questions
Does the New Palafox project include stormwater improvements?
Yes. The City of Pensacola lists stormwater work as a main part of the project, along with ADA upgrades, public-safety changes and streetscape work. The street hadn’t had a major drainage upgrade since 1999.
Why are pedestrian upgrades relevant to stormwater design?
Curb ramps and crossings depend on carefully set heights and slopes. Those same heights decide how runoff travels along the curb and into the drains. Change one and you change the other, so both get planned together.
Does new stormwater piping mean downtown Pensacola cannot flood?
No. More pipes can catch and move water better inside the project area. But drainage still depends on how hard it rains, the state of downstream pipes, tides and regular cleaning. A big enough storm can still overwhelm any street.
Are stormwater inlets placed wherever water naturally ponds?
Not on their own. Engineers look at street grades, gutter flow paths, buried utility lines, pedestrian access and the capacity of the connected drains before they set inlet spots. A low point is only a starting clue.
What should downtown property owners ask during a nearby street-drainage project?
Ask how you’ll keep storefront access during the work, where temporary drainage will run, how curb access may change and who to call with concerns. The City says storefronts along Palafox are meant to stay open to customers during construction.
